Bachmann 35-411SF OO Gauge Class 47/0 47012 BR Blue

PLEASE REVIEW THE PHOTOGRAPHS AS WELL, ACCESSORIES/BOXES ETC WILL BE SHOWN IF THEY ARE INCLUDED.

WORKING ORDER: Yes. DCC Sound Fitted.

COSMETIC CONDITION: New.

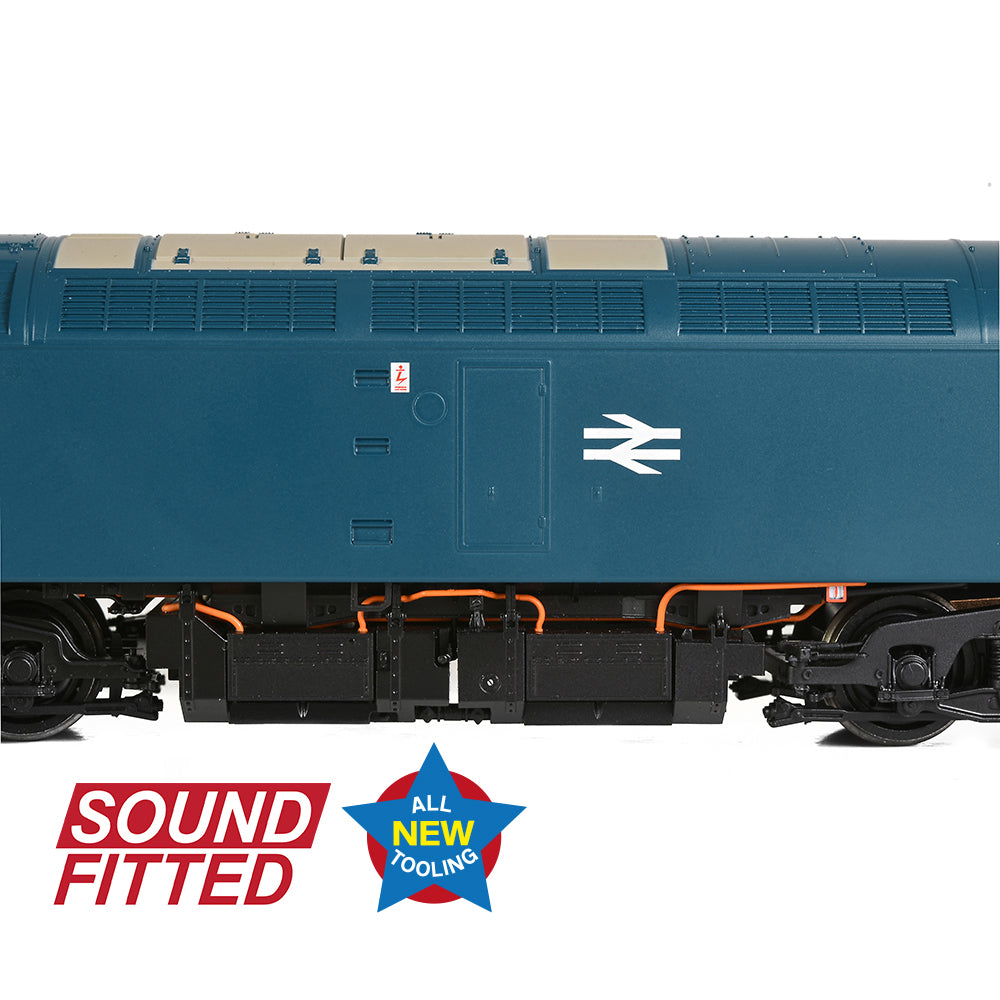

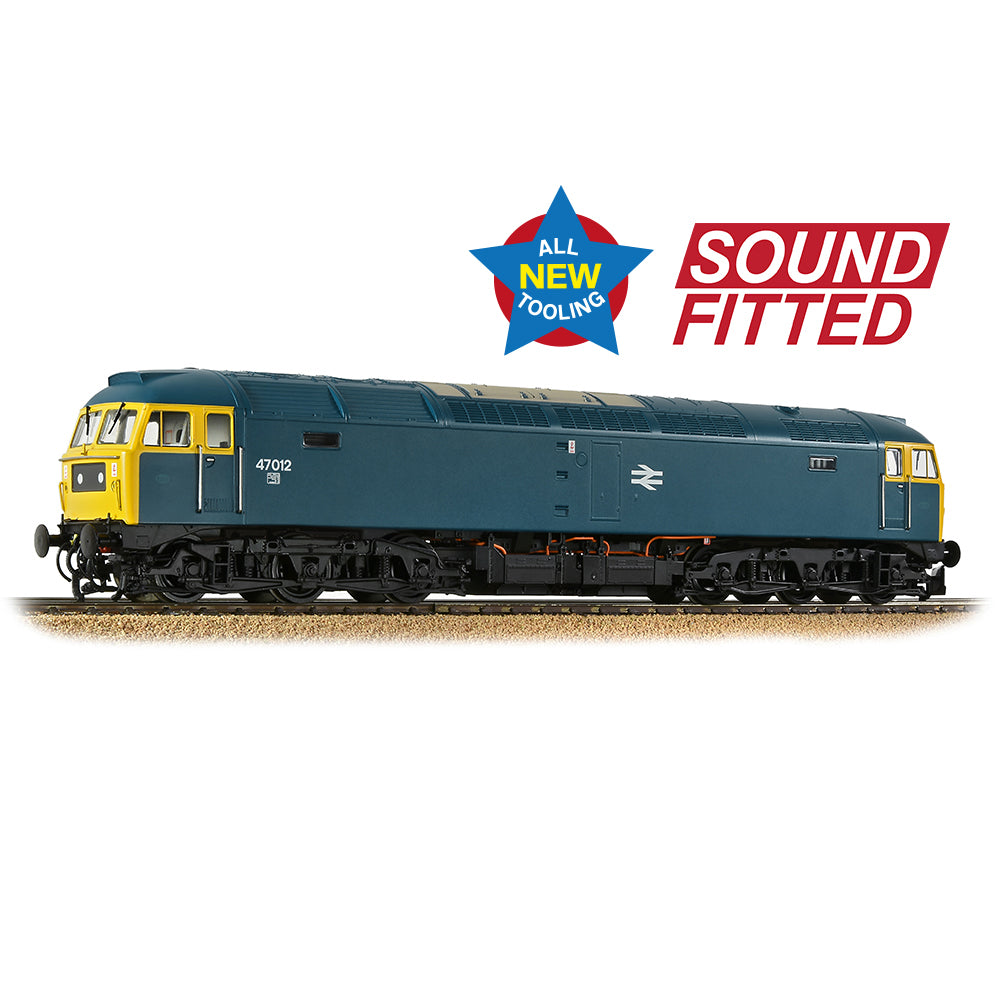

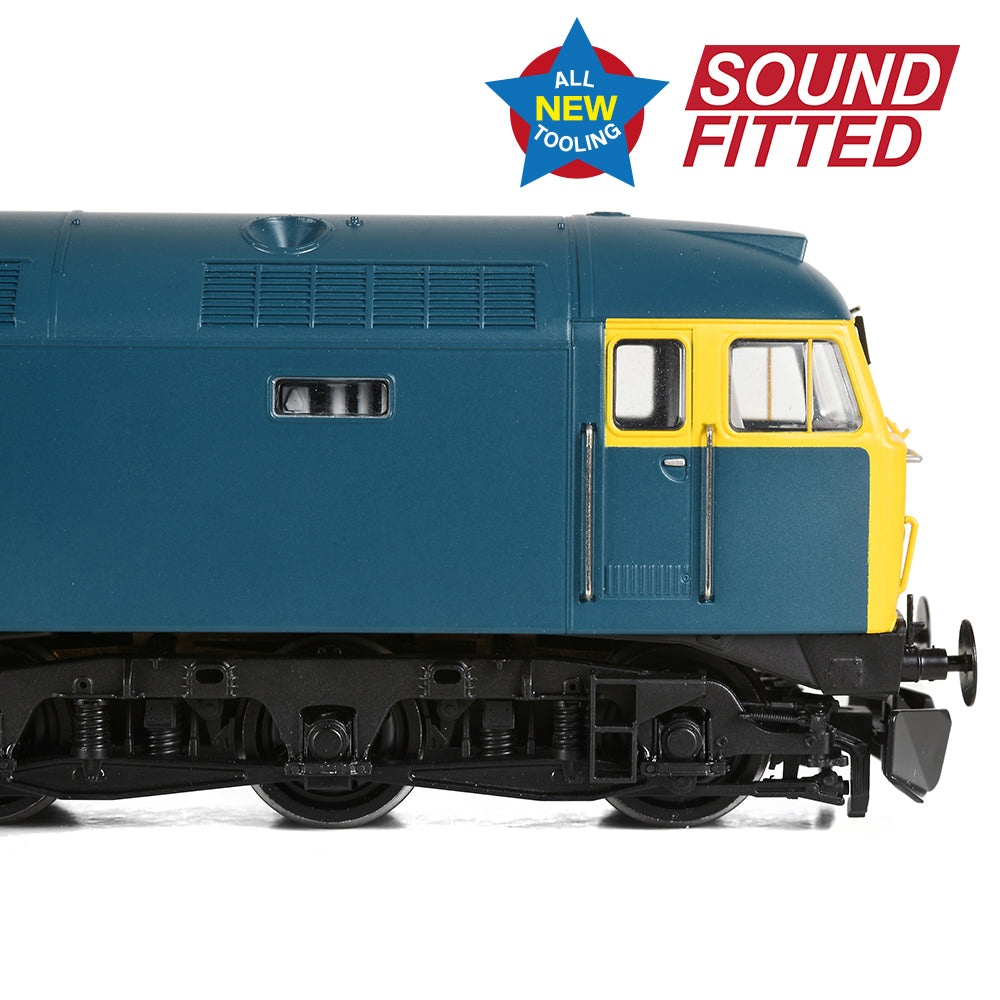

As part of our Autumn 2021 British Railway Announcements, we are delighted to present the stunning all-new Bachmann Branchline Class 47/0 No. 47012 in BR Blue livery.

Designed from scratch, this all-new model incorporates unrivalled levels of detail and technical features taking the Branchline Class 47 to new heights for British outline diesel locomotives. With high fidelity mouldings, numerous separately fitted parts and countless tooling variations to capture the minutiae of the real locomotives throughout their lives - ensuring each model is faithful to its prototype – our new 47 is brought to life with an exquisite livery application using true-to-prototype colours, fonts and logos. Along with an unprecedented array of lighting features, our new Dual Fitted speaker system is fitted to all models bringing to life our SOUND FITTED models. For the ultimate experience, choose our SOUND FITTED DELUXE models with their ground breaking motorised radiator fans and authentic tinted windscreen glazing!

  • Bachmann Branchline OO Scale
  • Era 7
  • Pristine BR Blue livery
  • Running No. 47012
  • SOUND FITTED - Fitted with a ESU Loksound V5DDC Sound Decoder – See below for the function list
  • Length 255mm

DETAIL VARIATIONS SPECIFIC TO THIS MODEL

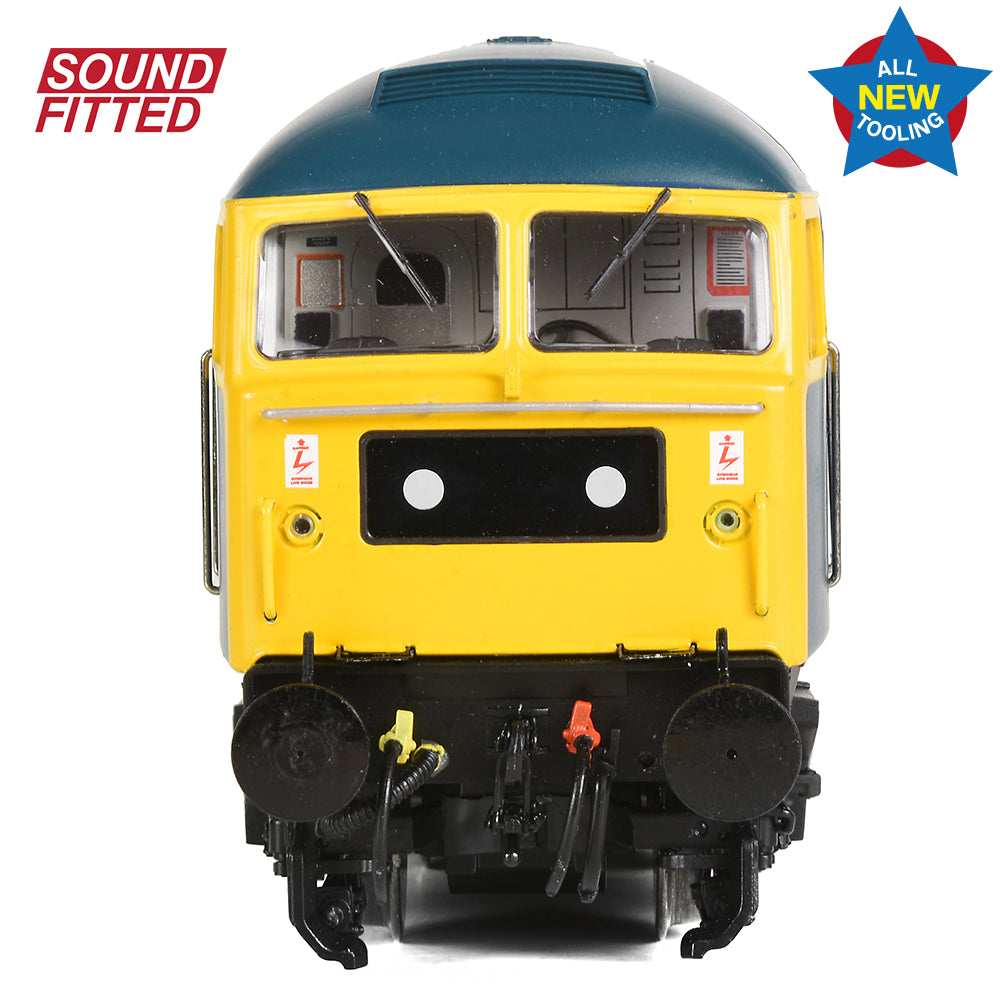

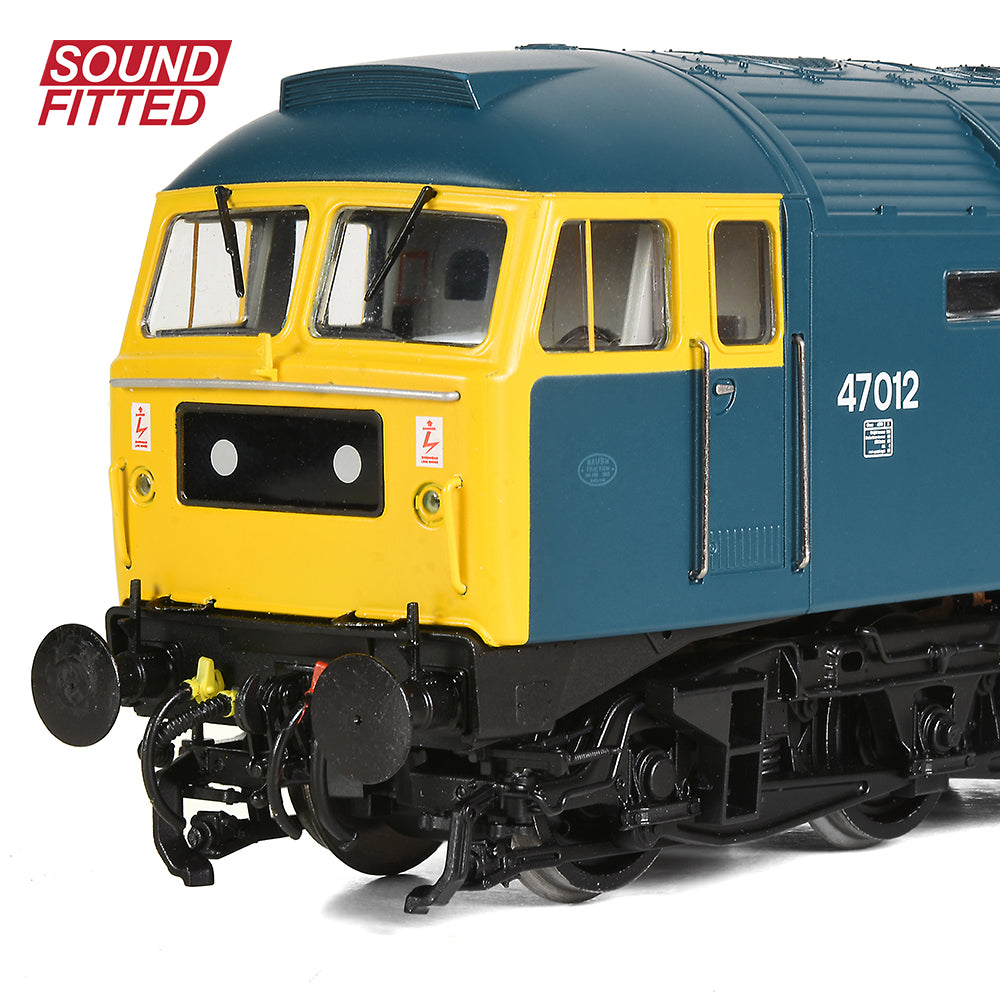

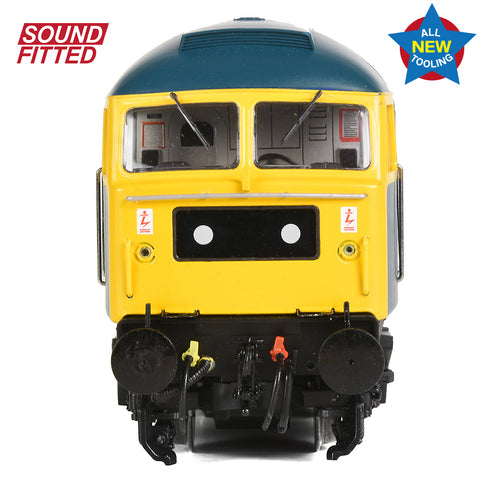

  • Glazed Headcode Panels displaying ‘Dominos’
  • Single Bufferbeam Bracket denoting a Brush-built Machine
  • Single Arm Windscreen Wipers
  • Round Buffers
  • Full Cab Roof Vents
  • Serck Radiator Grilles
  • Ribbed Exhaust Panels
  • Spanner Mk3 Boiler
  • 1,200 Gallon Water Tanks with Water Filler Valves
  • Plated Bogie-mounted Cab Steps
  • Stones Speedo Drive

BACHMANN BRANCHLINE CLASS 47 SPECIFICATION

MECHANISM:

  • Five pole, twin shaft motor with two flywheels providing drive to both bogies
  • All axle drive
  • Electrical pickup from all wheels
  • Separate metal bearings fitted to each axle
  • Diecast metal chassis block and bogie towers
  • Diecast metal gearboxes, with gearing arranged for prototypical running speeds and haulage capabilities
  • 5mm (OO gauge) wheels to NEM310 & NEM311 standards with authentic profile and detailing
  • Detachable coupling pockets to NEM362 standards fitted to each bogie
  • Designed to operate on curves of second radius (438mm) or greater

DETAILING:

  • Bogies constructed from multiple components featuring full relief detail

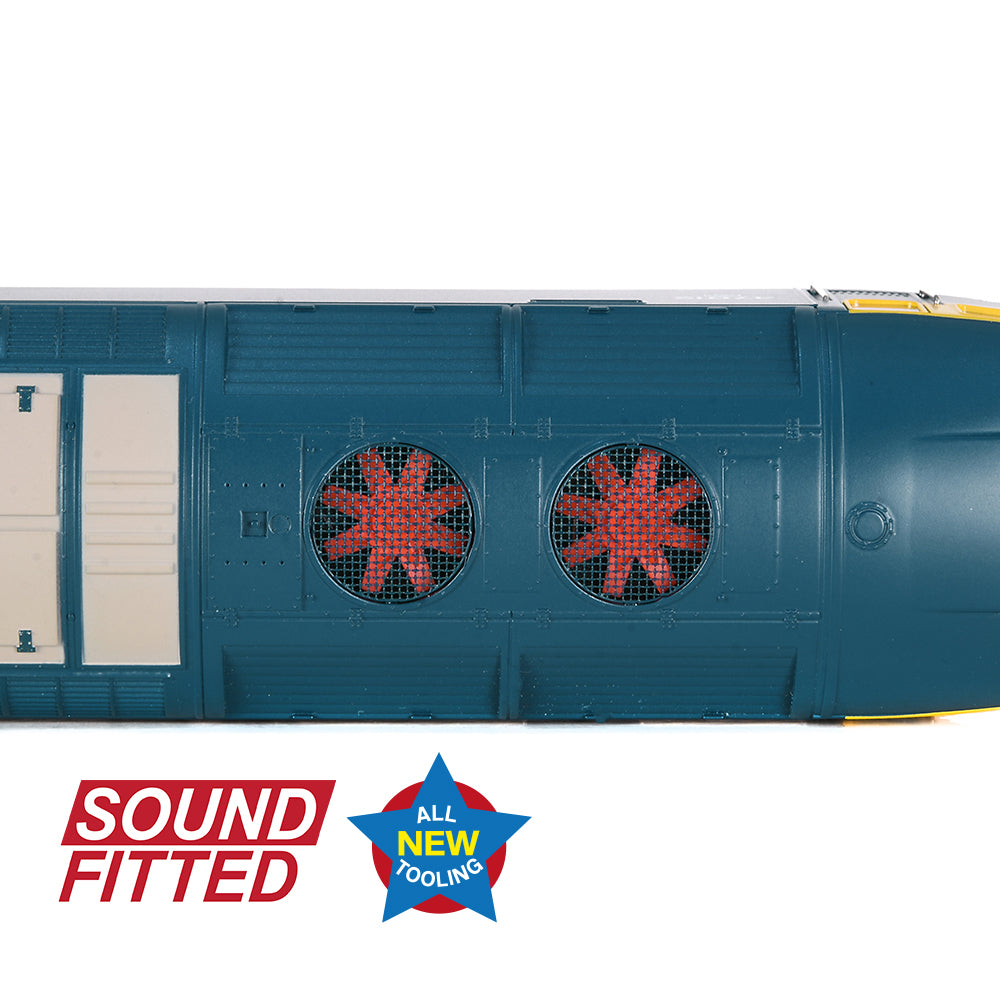

  • Rotating radiator fans, driven by an independent motor and gearbox, operated via a DCC function, or randomised when operated as part of the sound project on DCC and Analogue control (SOUND FITTED DELUXE models only)
  • Tinted windscreen glazing (SOUND FITTED DELUXE models only)
  • Separately applied metal detail parts, including grab handles, windscreen wipers and etched fan grilles
  • Sprung metal buffers
  • Each model supplied with a full set of decorated, model-specific bufferbeam pipework and accessory parts

LIGHTING:

  • Directional lighting, switchable on/off at either end on DCC or Analogue control

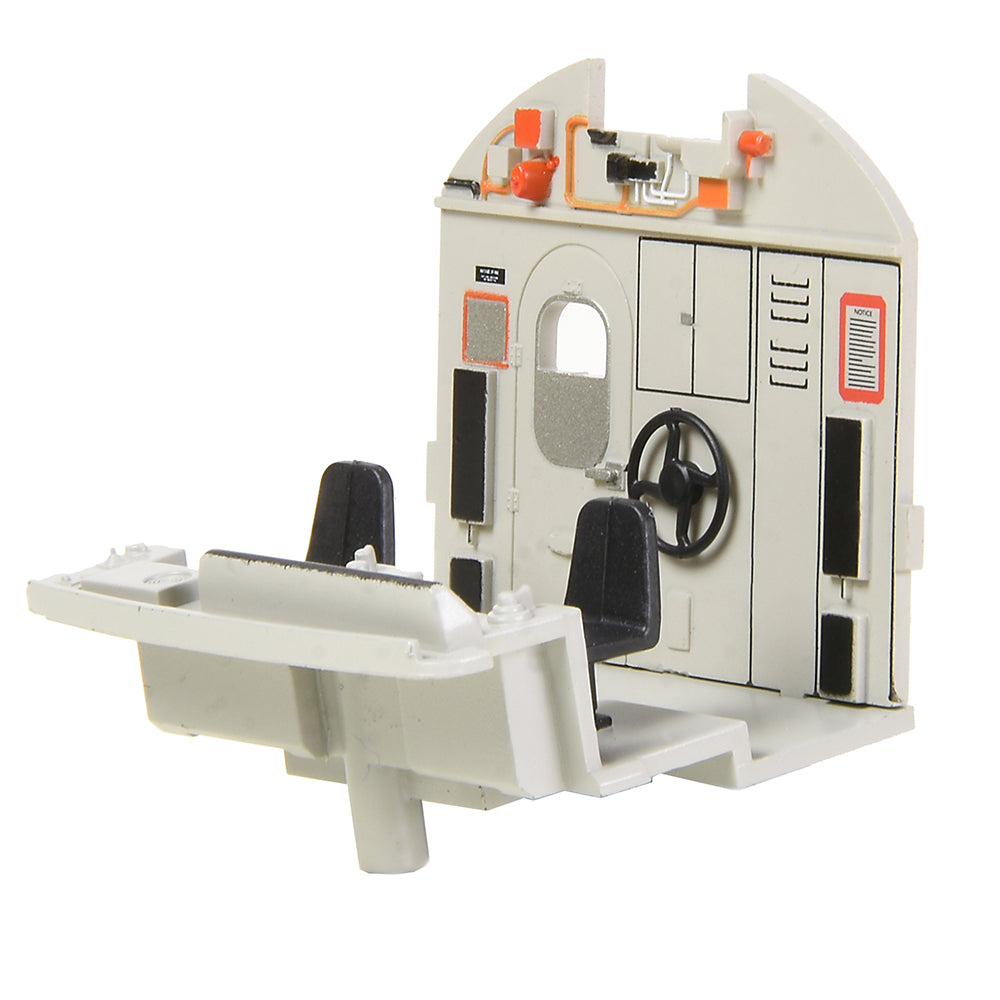

  • Cab lighting*, assigned to two DCC functions for separate switching of each
  • Separately switched Engine Room lighting* (*when used on DCC)
  • Authentic light colours and temperatures selected for each model based on era and application

DCC:

  • Plux22 DCC decoder interface

SOUND:

  • Two quality speakers employed for optimum sound reproduction, fitted to every model as standard
  • ESU Loksound V5DCC Sound Decoder fitted to SOUND FITTED and SOUND FITTED DELUXE versions
  • Sound files produced specifically for the Bachmann Branchline Class 47 using recordings from real locomotives
  • SOUND FITTED and SOUND FITTED DELUXE models operate on DCC and Analogue control as supplied. On Analogue, an authentic engine start up sequence, including the momentary dimming of all lights during engine start up, and running sounds are produced when power is applied

LIVERY APPLICATION:

  • Authentic liveries applied to all models
  • Multiple paint applications employed on each model using BR specification colours
  • Logos, numerals and text added as appropriate using multi-stage tampo printing using authentic typefaces, logos and colours



SOUNDS

F0 - Directional Lights - On/Off (plus Light Switch Sound)

F1 - On - Warm Engine Start / On, Off - Failed Engine Start / On, Off, On - Cold Engine Start

F2 - Brake

F3* - Horn (Playable)

F4* - Two-Tone Horn

F5 - Heavy Load

F6 - Coasting (Manual notch Down if F22 On)

F7 - Maximum Revs (Manual notch Up if F22 On)

F8** - On - Coupling Up / Off - Uncoupling Up

F9 - Flange Squeal (Speed Related)

F10 - Fan Noise

F11 - Engine Room Lights On/Off (plus Light Switch Sound)

F12 - On - Guard’s Whistle / Off - Driver’s Response Horn

F13 - Cab Lights On/Off No. 1 (plus Light Switch Sound)

F14 - Cab Lights On/Off No. 2 (plus Light Switch Sound)

F15 - Auto Uncouple Cycle

F16 - AWS Horn

F17 - AWS Bell

F18 - On - Sound Fades Out / Off - Sound Fades In

F19 - Mute (Latch) / Volume Cycles 6 Levels (Trigger)

F20 - No. 1 End (Fan) Directional Lights Off

F21 - No. 2 End (non-Fan) Directional Lights Off

F22 - Manual Notching Logic On/Off (control with F6 & F7)

F23 - Spirax Valve

F24 - Station Announcement

F25 - On - Driver’s Door Open / Off - Driver’ Door Shut

F26 - Air Dump

*Alternative Horn sounds and behaviour can be selected via CV changes

** Alternative coupling sounds can be selected via CV changes



Analogue Users: Please note that normal load running sounds and any other automatic or randomised sounds will also operate when this model is used on analogue control (DC) straight from the box!

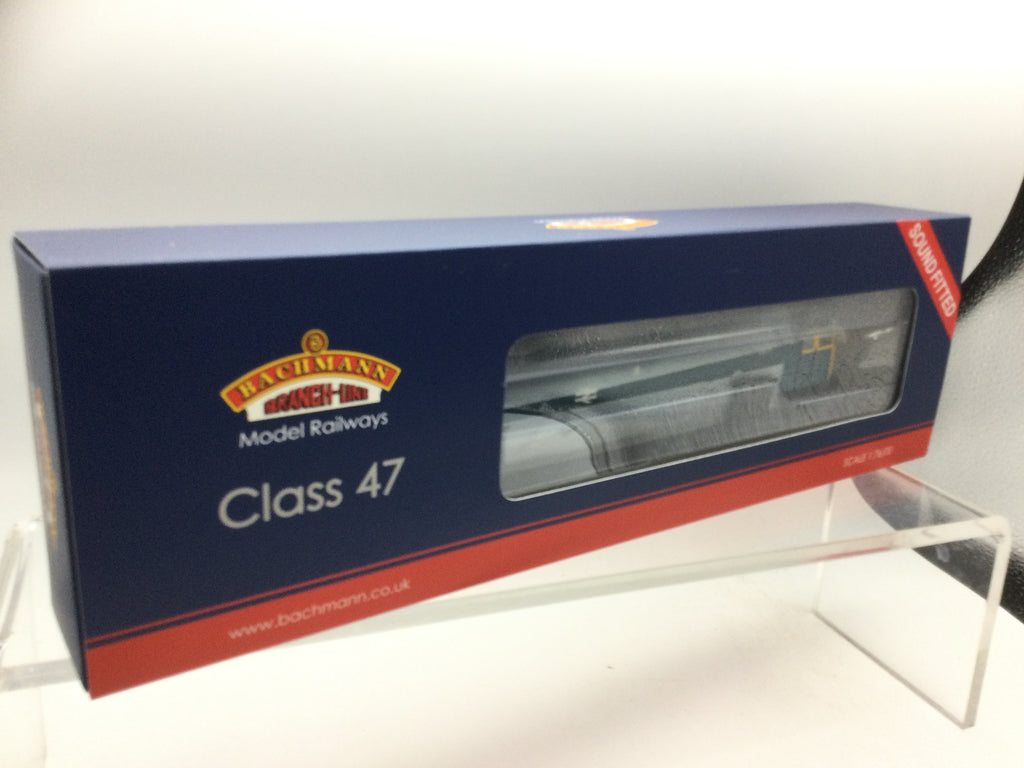

BOXED: Yes.

NOTES:

Bachmann 35-411SF OO Gauge Class 47/0 47012 BR Blue
